Multihead Weigher

Automatic Weighing & Packing System

A good reputation of high stability and accurate weighing makes it become the trusted range of multi-head weighers.

Application: Confectionery/peanuts/snack/chips/nuts/jelly/flakes/cookies/bakery/coffee beans/pet foods/dry granule or small objects etc.

Download Brochure

Models

ItemCompact 10 heads WeigherCompact 14 heads Weigher5.5L Large Volume 10 heads Salad Weigher5.5L Large Volume 14 heads Salad Weigher
ModelAC-6B10-2B-13XAC-6B14-2B-12XAC-6B10-2B-06Y
AC-6B10-3B-06Y
AC-6B14-2B-06Y
AC-6B14-2B-06Y
Generation2.5G2.5G2.5G/3.5G2.5G/3.5G
Weighing Range15g-300g15g-300g100kg-8000g100kg-8000g
Accuracy_0.3-0.8g_0.3-0.8g_1-3g_1-3g
Max.speed60WPM120WPM50WPM(2.5G)
60WPM(3.5G)
80WPM(2.5G)
60WPM(3.5G)
Power Supply220V,50Hz,60Hz,1kW220V,50/60Hz,1.2kW220V,50/60Hz,2kW220V,50/60Hz,3kW
Hopper Volume0.8L(Dimple/Plain)0.5L(Dimple/Plain)5.5L(Dimple/Plain)5.5L(Dimple/Plain)
Monitor10.4 inches color touch screen
Dimension(mm)1336*930*11461236*936*11131900*1266*19002340*1710*1860
Optional PartsIndeed funnel/V shape linear feeder pan/
Independent linear feeder pan/Collection bucket.
skirt on linear feeder pan/Cylinder gate on linear feeder pan/ Pressure valve / Heater
Optional ModificationBucket surface finishing/Collating
chuteangle/Feeder/Collating funnel.
Rotary top cone/Plate hopper/316 Stainless steel/Linear feeder pan angle/Cross baffle in collating funnel/Diameter and angle of collating funnel Teflon coating/Collating chute angle.

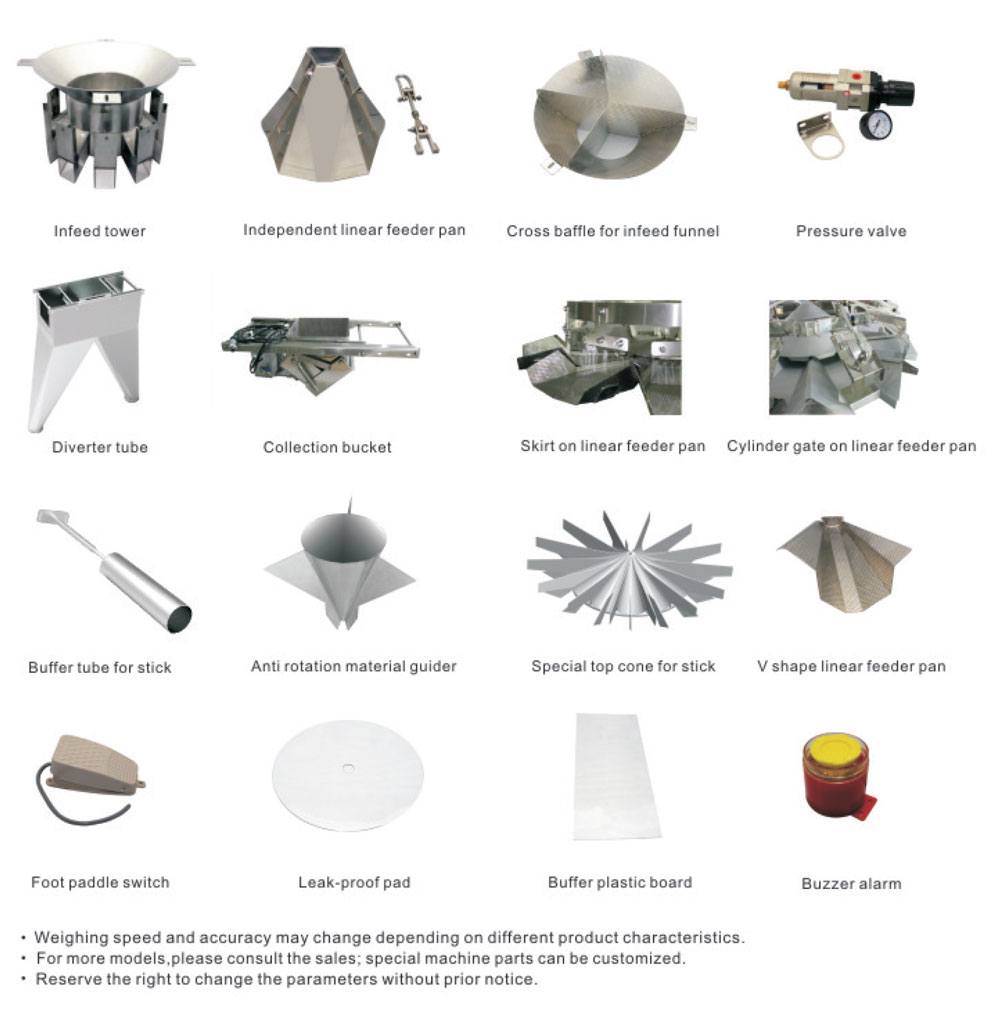

Options
